Description

BMG Double Girder Semi-Gantry Crane

BMG type double beam semi gantry crane is used together with Trolley. It is track travelling small and medium sized crane. Its proper lifting capacity is 5 to 50 tons. proper span is 10 to 20 meters, Its proper working temperature is -20℃to 40℃.

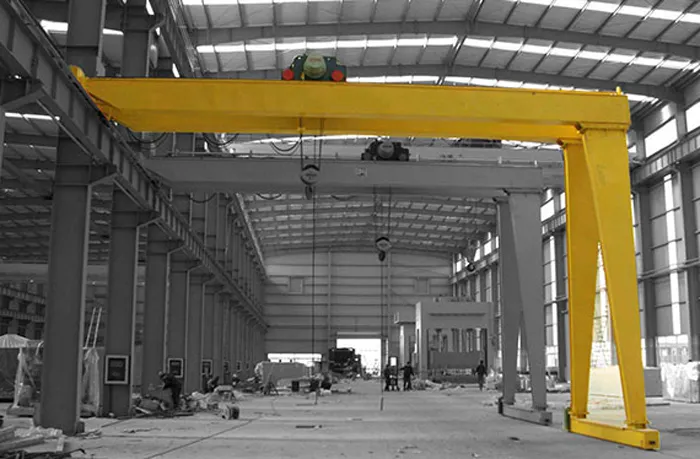

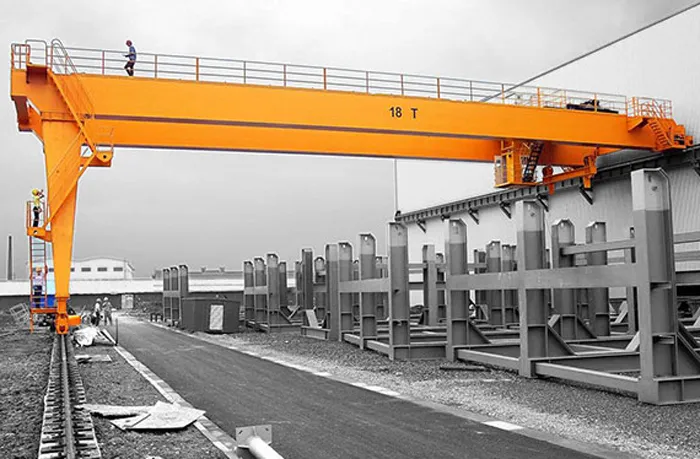

Semi gantry crane has wide range of application, which is mainly used for loading and unloading in open space and warehouses, and it basically has two operation forms that are ground handling and cab operation. It is called as semi gantry crane because one side of the main girder is mounted on the tracks of the edge of workshop rather than supported by general supporting legs.

Compared with other semi gantry crane manufacturers, Haoyu Group has many advantages in the production and manufacturing of semi gantry crane, such as long production history, rich manufacturing experience and favorable semi gantry crane price. Except for semi gantry crane, we also offer single girder overhead crane, jib crane, electric winches for sale, scissor lifting platform, tower crane, gantry crane, electric transfer cart etc.

It is ideal for outdoor applications where lifting facilities are provided, without the cost of a building or any supporting steelwork.

Advantages

• It has only one leg, and the other side is directly installed on the track of the factory building without any leg.
• The main beam, ground beam and outrigger are made of high-quality carbon steel Q235B or Q345B.
• The main beam is box type.
• The main welding is automatic submerged arc welding, non-destructive testing.
• High load capacity.
• The ground beam and outrigger are connected by high-strength bolts.
• The ground beam is equipped with buffers and track cleaning devices.
• The reducer adopts a hard-tooth surface reducer, which has a compact structure and is durable.

Specification
