Truss-Type Gantry Crane

Lifting Capacity 3.2-32t
Span12-30m
Lifting height 6-9m or customized
Work levelA3,A4,A5
CertificationCE,ISO,EAC
Whatsapp+8615003858661
Emailinfo@jurencranes.com

Description

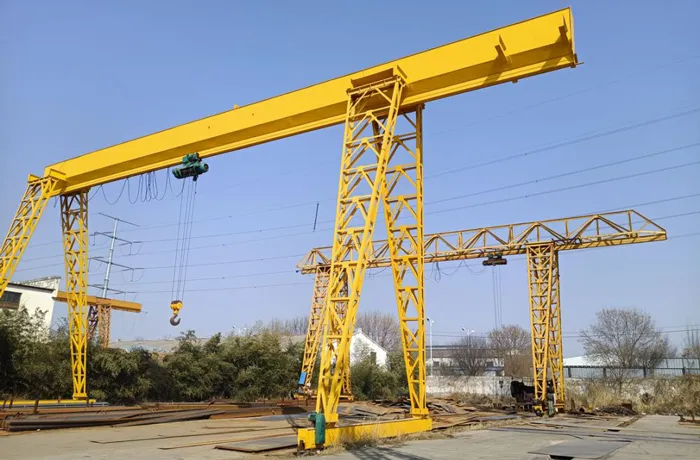

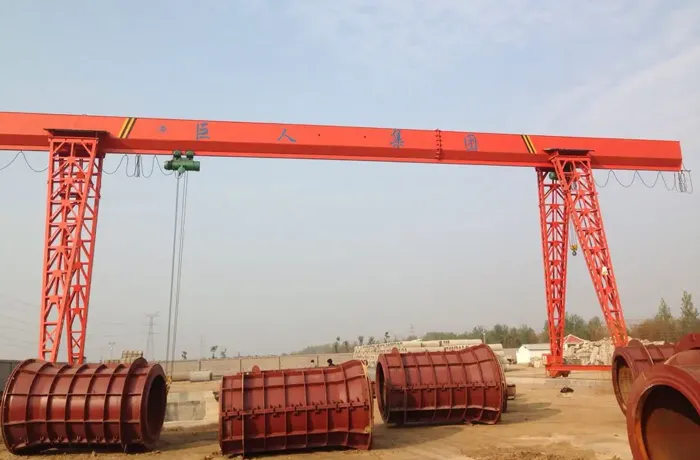

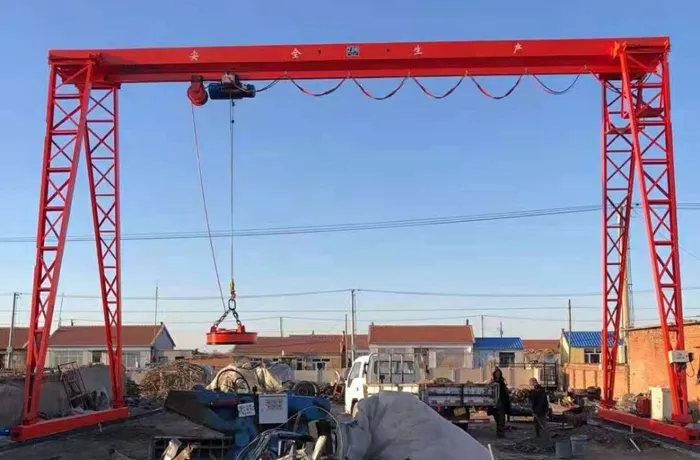

MHBH Box-Type Combined Truss-Type Gantry Crane

MHBH Type Single Girder Gantry Crane (Truss-type) truss crane adopts model CD, MD, and other electric hoists, which are composed of metal structure, cart operating mechanism, electric device and trolley.It has cantilevers, the crane can load the goods to the crane edge through the supporting legs, which is very convenient and high efficiency.It is suitable for the small and medium lifting load outdoor working site in factories, mines, warehouses, etc.

Advantages

The best light crane,low cost & less wastage
Easy operation & installation
Strong wind resistance
Safety with high performance
Be suitable for different operating conditions and provide you One-stop Solutions

Specification

Lifting capacity	t		3.2	5	10	16	20	32
	Lifting		8,8/0.8	8,8/0.8	7,7/0.7	3.5	3.5	43625
Speed m/min	Cross travel		20	20	20	20	20	20
	Long	Ground	20	20	20	20	20	20
	travel	Cabin	20,30,45	20,30,40	30,40	30,40	30,40	30,45
Motor Type (KW)	Lifting		ZD41-4/4.5	ZD141-4/7.5, ZDS10.8/4.5	ZD151-4/13, ZDS11.5/4.5	ZD151-4/13	ZD152-4/18	ZD*62-6/18, ZDX1-2.2/18
	Cross travel		ZDY12-4/0.4	ZDY121-4/0.8	ZDY21-4/0.8×2	ZDY21-4/0.8×2	YZD-4/0.8×4
	Long Travel	Ground	ZDY21-4/0.8×2	YZR132M1-6/2.2×2	YZR160M1-	YZR160M1-6/6.3×2		YZR160M2-6/8.5×2
		Ground	ZDY21-4/1.5×2	YZR132M2-6/3.7×2	6/6.3×2	YZR160M2-6/8.5×2		YZR160L2-6/11×2
		Cabin	ZDR22-4/1.5×2	YZR132M2-6/3.7×2		YZR160M2-6/8.5×2
		Cabin	ZDR24-4/2.2×2	YZR160M1-6/5.5×2		YZR160L2-6/11×2
Electric Hoist	type		CD1/MD1			CD1	HC
Power Supply	380V 50HZ 3phase AC/220v 50Hz 1phase
Span	m		12~30
Lifting height	m		6, 9
Span	m		12,16,20,24,30
Controlling method	Cabin;Remote control
