Description

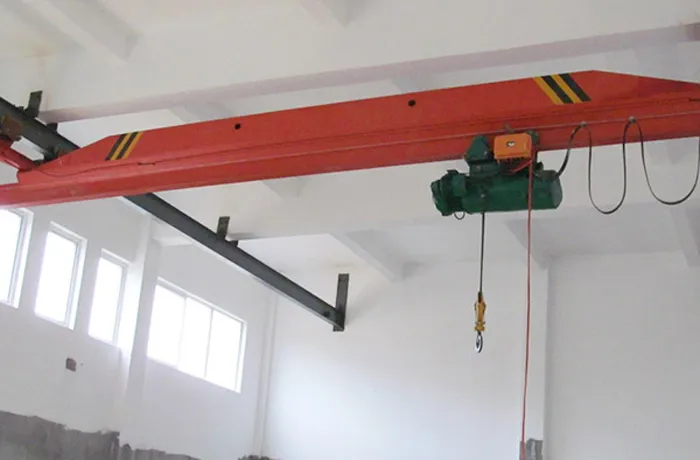

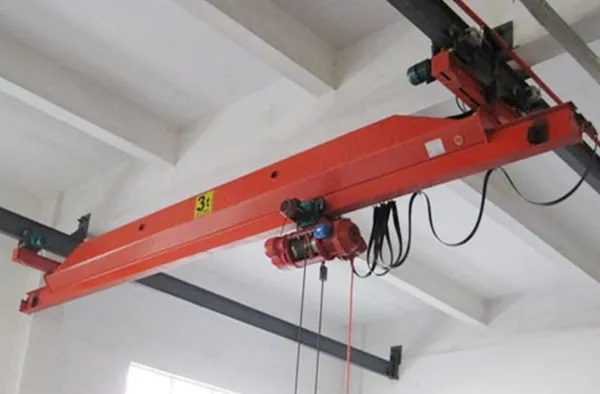

The LX electric single-beam suspension crane is composed of a main beam, an end beam, an electric hoist and an electric sports car welded by steel plates and I-beams. It is suspended on the I-beam track in the upper part of the factory building. The cantilever length is 0.5-1m. The electric hoist is along the The lower flange of the main beam I-beam runs to complete the lifting work of items. It has the characteristics of light structure, convenient installation and maintenance, and is widely used in production workshops, warehouses, goods yards and other places.

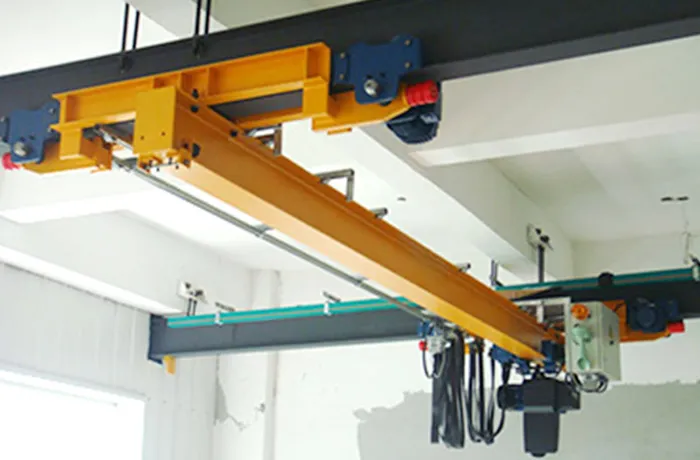

LX-Suspension Overhead Crane is a light and small material handling equipment. The whole set overhead crane is used with CD and MD type electric hoist, electric chain hoist, etc .It's usually used in the environment that the headroom is too samll to set the main girder and end truck of the crane

The product adopts a ground controlling and works at a temperature of -20°c to 40°c. It is usually used in the working environment with no combustible, explosive or corrosive substance or media, such as, machinery assembly, warehouse, caves, etc.

Advantages

• Simple structure, easy installation and maintenance, small space occupation, suitable for spans of various specifications.
• It has light weight, small wheel pressure, low requirements on workshop structure, and can save construction costs.
• Low price and high cost performance, which can save investment costs for users.
• The operation is flexible and can meet the lifting needs of different occasions and materials.
• Customization Options - Tailor it to your needs! Choose from various customization options to make the crane your perfect lifting partner.

Specification
