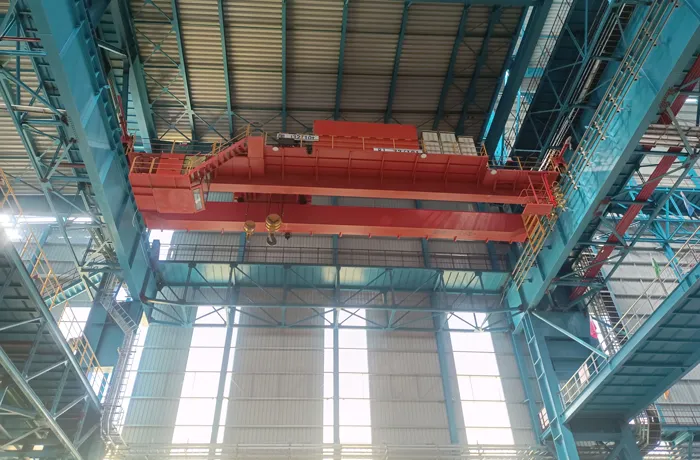

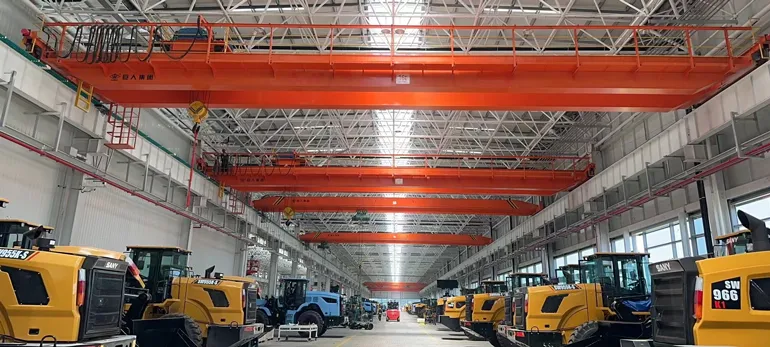

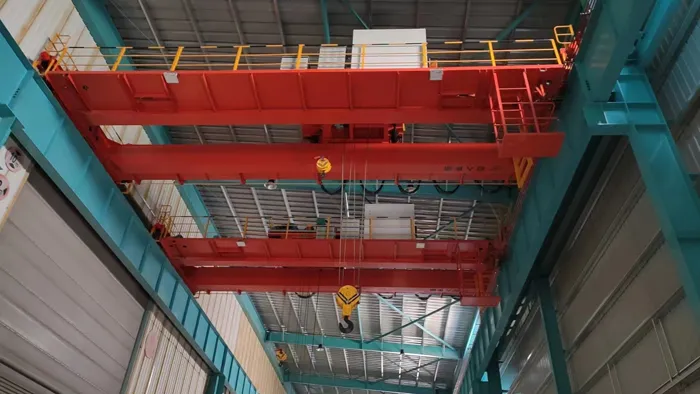

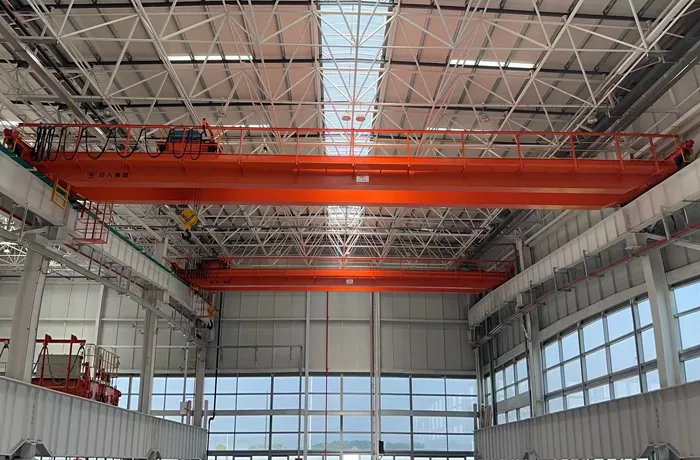

Description

QD general-purpose overhead crane is suitable for all kinds of common operating conditions, which are used to handle the material, install the equipment and maintain the equipment. It is the most widely used general lifting equipment. Such as, it is used in machinery manufacturing, assembling, petrochemical , warehouse logistics, electric power construction and etc.

which is widely used to upload and move of normal weight in the fixed crossing space and also can work with various special-purpose hoist in special operations.

QD general-purpose overhead crane adopts double girders and double rails, individual trolley with winch. It has many advantages, such as simple structure, mature technology, stable performance, convenient manipulation, convenient maintenance and installation, high adaptive ability under all kinds of various working conditions, low price and etc, which attract the attention of the user greatly.

1. QD model overhead crane with hook is mainly composed ofbridge, running gear ofcrane,trolley and electrical device,etc. It isdivided into two working classes: A5 and A6 according to the use grade and load-up condition.

2. There are three kinds ofmethod for entering the platform ofcab: from the side, from the end and from the top. The figure is theside entrance: arrowhead A shows the end entrance: the top entrance is at the place there is no door.

3. The figure shows that the cab is mounted at the left end.

4. Safe slide wire or angle iron can be used for electric conduction ofthe crane: it can be either at the opposite side ofthe cab ( sameas the figure) or at the same side ofthe cab.

5. Operation ofthe crane shall be finished in the cab completely

6. HO is the increased height ofbuffer ofthe crane, HO250.

Advantages

• Space maker, building cost saving
• Smart driving, higher efficiency
• Hardened gear
• Maintenance free
• Over heating, Overloading protect
• Heavy duty motor, 60%ED rating
• IP55 protection, F/H insulation
• Hardened gear

Specification
