Description

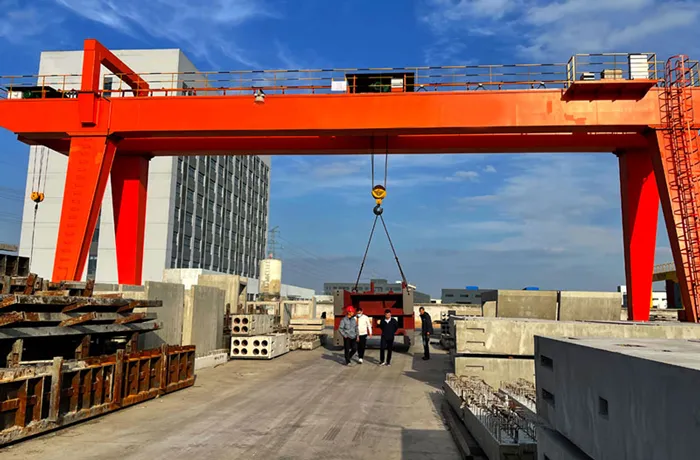

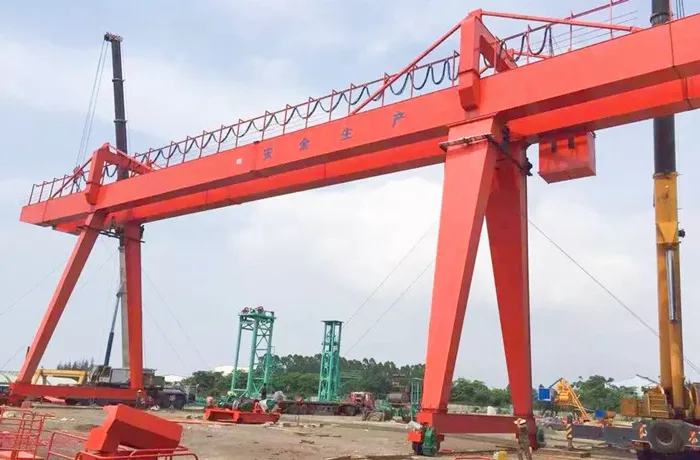

MHS Hoist Double Beam Gantry Crane

MHS model double girder gantry crane is composed of two beams, four support legs, crane travelling systems, electric hoist trolley and electric equipment. The frame of beams and legs adopts box-type welding. The crane travelling mechanism adopts separate drive. The control models are cabin control, pendant handle control or wireless remote control.

MHS model double girder gantry crane is medium duty gantry crane, the duty class are A3 or A4, the capacity from 3t to 50t, the span from 7.5m to 35m, the standard lifting height are from 3m to 12m, the temperature of working environment within -20~+42 degree.

Advantages

• Reasonable design ,beautiful shape ,light self-weight and low wheel pressure so as to reduce budge and investment of rail foundation
• Integrated motor + brake +gearbox ,Totally enclosed Aluminium housing ,fully sealed ,conforming to IEC standard .No wearing part ,full life design.
• Fully hard gear HRC60 with longer service life reducer ,Semi-fluid lubrication ,fully filled with oil in factory ,low noise ,no leakage ,smart driving ,higher efficiency.
• Heavy duty motor with anti-drop protection , 60% ED rating ,NSK bearing ,IP55/H insulation ,electromagnetic disk brake . Lifting motor manual release included
• Overheating ;Rotation lifting limit switch ,4 steps adjustable ; Long travelling proximity switch ,non-touch ,can set 0--6m distance ; Hoist cross switch 2 steps ( slow - down + stop ) ; Load sensor and amplifier overloading protection system.
• DIN 15400 standard forging hook ,Grade T , rotating 360 degree ; 2160 N/mm2 Heavy duty galvanized wire rope ,long life service.
• Hoist data records ,safety monitor system ( black box ) ,Touch screen is powerful LCD display terminal and command inputs panel in HMI system of Guanhui crane control.
• Optimized design ensuring minimum vertical and horizontal wheel loads ;Tailor made solutions arriving to any need ;Cantilever as option
• Maintenance free.
• Has CE / ISO certificate.

Specification
