Single-Girder Explosion-Proof Suspension Overhead Crane

The main beam of explosion-proof electrical suspend crane is mounted on the top of the workshop，is a small light rail type crane.

Lifting Capacity0.5~10t
Span5~31.5m
Lifting height6~30m
Work levelA3,A4
CertificationCE,ISO,EAC
Whatsapp+8615003858661
Emailinfo@jurencranes.com

Description

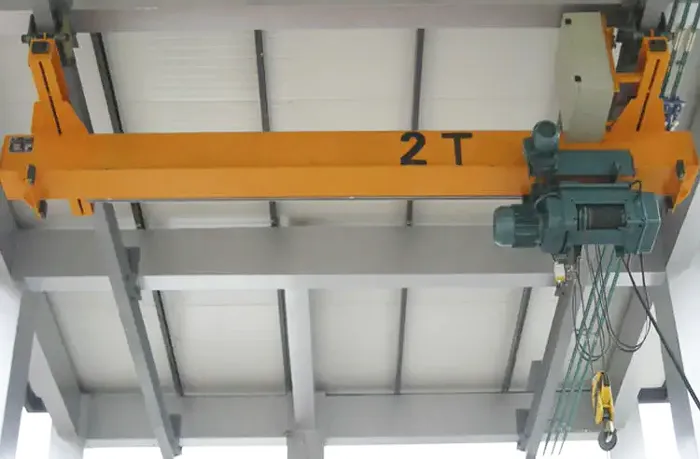

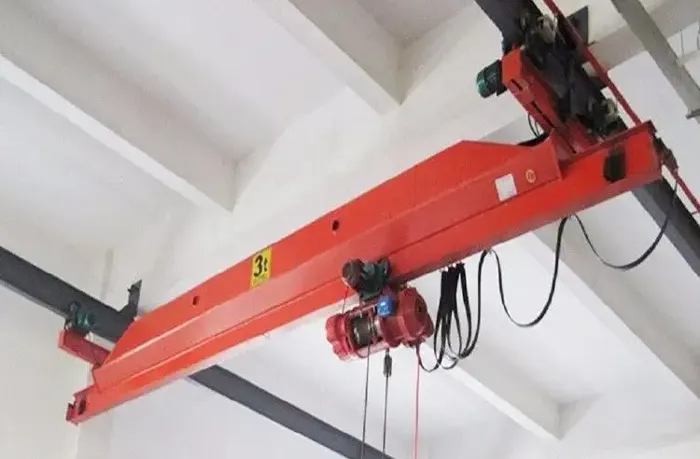

LXB Single-Girder Explosion-Proof Suspension Overhead Crane

LXB type explosion-proof electric single girder suspension crane is matching for HB-electric hoist,it is a small light lifting, with a reasonable structure, beautiful appearance, explosion-proof performance and so on.

Blast-proof wire rope motor-driven hoist conforms to the prescription of GB3836.1-2010 Blast-Proof Electric Apparatus for Explosive Atmosphere Part One: Common Requirement and GB3836.2-2010 Blast-Proof Electric Apparatus for Explosive Atmosphere Part Two: Flameproof Type; The electrical machines and electric appliances are flame-proof type. When classification of blast-proof are ExdⅡCT4, the travel mechanism must be spark resistant.

Advantages

Reasonable design for lower height of warehouse
Favorable performance
Safe and reliable traveling
Low noise,commodious cabin and good view

Specification

Lift Capacity				0.5~10
Explosion Proof Grade				ExdII BT4/Exd II CT4
Working Class				A3
Power Source				380V~415V 50HZ/60HZ 3PH
Crane traveling mechanism	Traveling speed			20m/min
	Motor	0.5~3t	3~22.5m	BZDY12-4/0.4KW*2
		5t	3~16m
		5t	16~22.5m	BZDY21-4/0.8KW*2
		10t	3~22.5m
